Product Introduction: CH430WQ12A-CT 4.3-inch Color LCD Display
This LCD display module boasts a resolution of 480x272 dots, providing sharp and vibrant visuals. The transmission/IPS/normally black display mode ensures excellent image quality from different viewing angles. With a luminance of 500 cd/m2 (optional), it delivers clear and bright content even in challenging lighting conditions.
Featuring a 16M color depth and a contrast ratio of 800, the CH430WQ12A-CT 4.3 inch tft lcd offers vivid and lifelike colors, enhancing the overall viewing experience. Its capacitive touch panel allows for precise and intuitive user interactions, adding convenience and versatility to the device.
Built to withstand various environments, this LCD display module has an operating temperature range of -30°C to +80°C, ensuring reliable performance even in extreme conditions. It also has a wide storage temperature range of -20°C to +70°C. With a long lifespan of 30,000 hours, it guarantees durability and longevity.
In summary, the CH430WQ12A-CT 4.3-inch color LCD display module offers impressive visual performance, robust functionality, and customization possibilities. Whether used in instruments, industrial equipment, medical devices, household appliances, or IoT equipment, it provides a reliable and visually engaging solution for various applications.
LCD Manufacture 4.3 inch Touch Screen Display Parameter (Specification)
Module No |
CH430WQ12A-CT |
-- |
Number of Dots |
480*3(RGB)*272 |
Dots |
Luminance |
500 |
Cd/m2 |
TP Type |
CTP |
-- |
TP interface |
I2C |
-- |
Lifetime |
30000 |
H |
LCD Manufacture 4.3 inch Touch Screen Display Feature
The CH430WQ12A-CT tft lcd is CE and RoHS certified, meeting industry standards for safety and environmental compliance. Additionally, it comes with a 12-month warranty, providing peace of mind and assurance of its quality.
One of the key advantages of this display module is its customization options. It supports customization of various aspects, including FPC shape and structure, TFT interface type, backlight brightness, and screen anti-glare. This flexibility allows for seamless integration into specific device designs and tailored user experiences.
LCd Manufacture 4.3 inch Touch Screen Display Application
The CH430WQ12A-CT is a high-quality 4.3-inch color LCD display module designed for various applications. With its advanced features and customizable options, it offers exceptional performance in instruments, industrial equipment, medical devices, household appliances, and Internet of Things (IoT) devices
After-sale warranty:
(1)Remote online technical support services;
(2)12 months warranty.

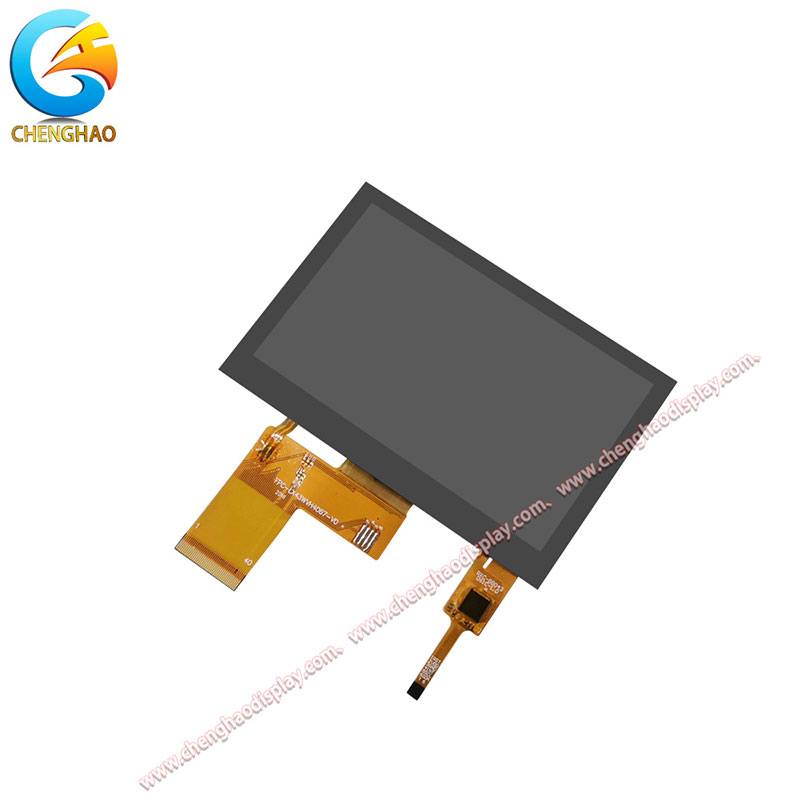

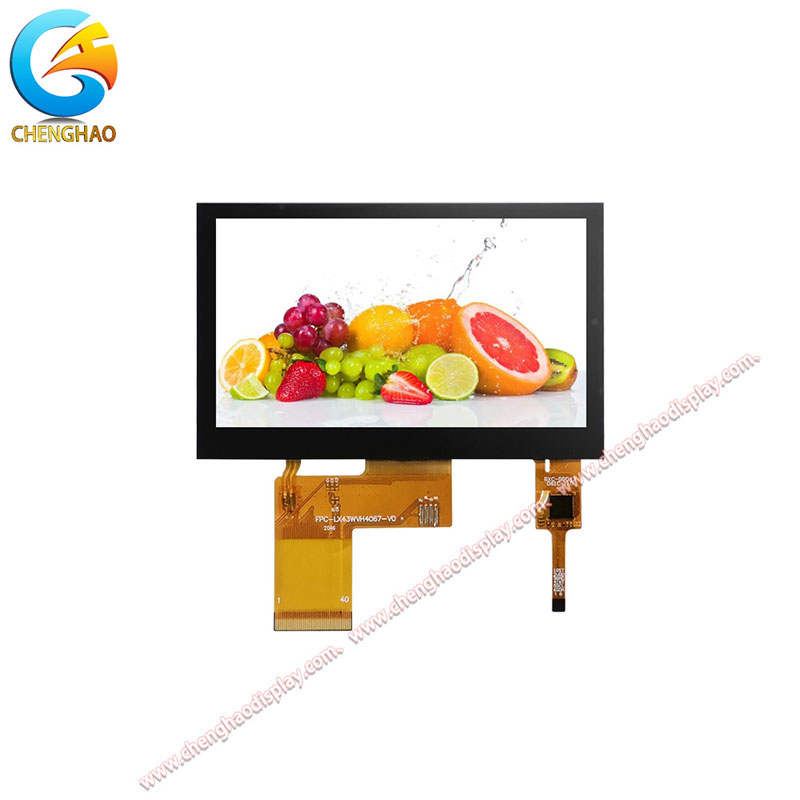

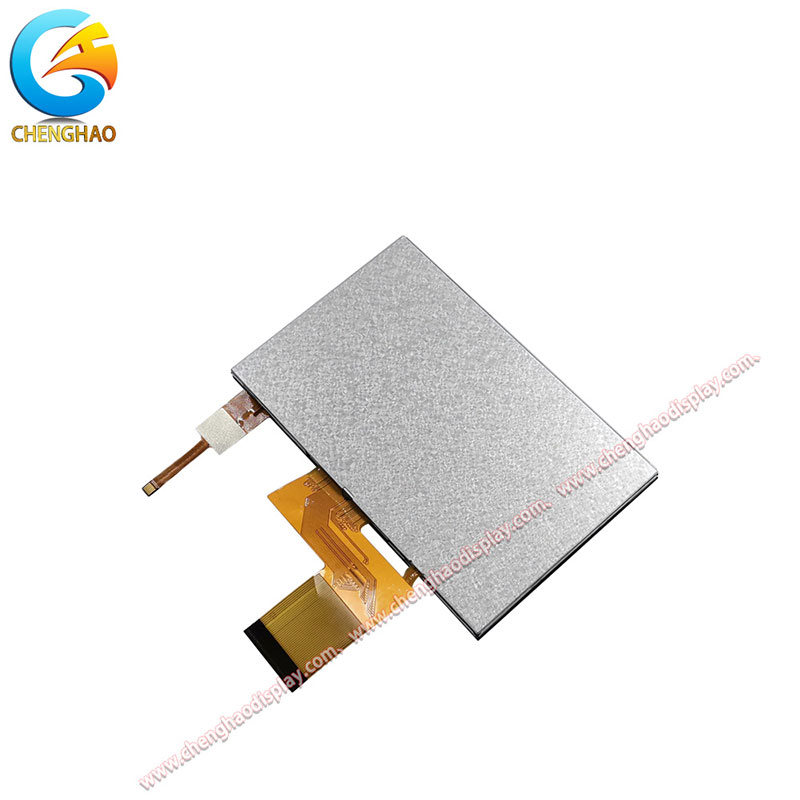

LCD Manufacture 4.3 inch Touch Screen Display Details
Keywords:4.3 inch lcd
Module No:CH430WQ12A-CT
Lcd Type:4.3” TFT+CTP
Display Mode:Transmission/IPS/Normally Black
Resolution:480*272 dots
Luminance: 500 cd/m2 (Optional)
Color: 16M
Contrast: 800
Connetor: FPC
FPC Pin Numbers: 40 pins
Storage Temperature: -20~ +70
TP Type: Capacitive
TP Interface: I2C
Operating Temperature: -30~ +80
Life Time: 30000 H
TFT Driver IC: ****
CTP Driver IC: ****
