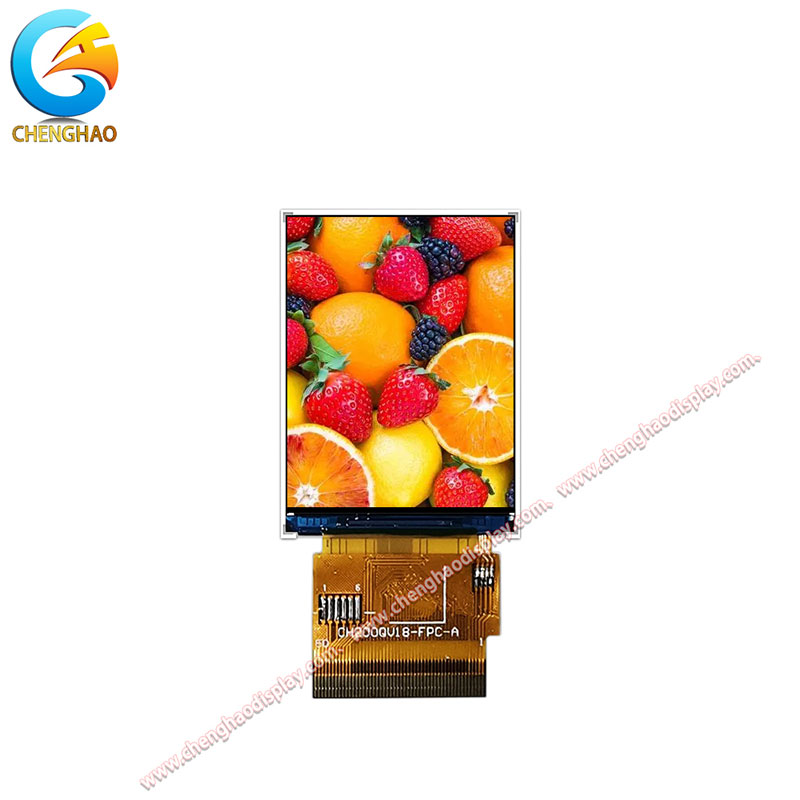

All Viewing Angle 240*320 2.0 Inch IPS TFT Display

Chenghao Display is a leading LCD Module manufacturer, and is dedicated to providing high-quality products to customers around the world. The company's advanced production equipment and strict quality control system ensure that every product is of the highest quality, regardless of the quantity produced. CH200QV16A is an All Viewing Angle 240*320 2.0 inch IPS TFT Display designed and customized by Chenghao Display for Australian customers. It has excellent performance and very attractive price. Chenghao Display's LCD modules are widely used in a variety of fields, including consumer electronics, home appliances, and industrial automation. The company is dedicated to providing high-quality products to customers, and is always willing to work with customers to find the best solution for their needs.

Model:CH200QV16A

Send Inquiry

Product Description

Chenghao Display CH200QV16A is an All Viewing Angle 240*320 2.0 inch IPS TFT Display Module. The display has a brightness of 300 cd/m2 and displays content in a vertical screen, and can display color videos or pictures with 262K/654K colors and 240*320 pixels. Thanks to the wide temperature resistance of internal components, this 2 inch tft lcd display has excellent performance in environments with temperatures ranging from -20 to +70°C, and its service life exceeds 20,000H.Chenghao Display CH200QV16 is a customized 240*320 tft lcd display, which can be modified and customized according to customer requirements. Modify the customized content as follows:

(1) Backlight Luminance: 200~2000 cd/m2
(2) Tft Interface: SPI/MCU/RGB/MIPI/LVDS...
(3) The shape and structure of FPC...
(4) Screen surface treatment: anti-glare..
(5) Install the touch panel: Resistive / Capacitive Touch Panel

All Viewing Angle 240*320 2.0 inch IPS TFT Display Parameter (Specification)

Display No	CH200QV16A
Display Mode	IPS/Transmissive/Normally Black
Resolution	240*320 dots
Interface	SPI
Luminance	300 cd/m2
Backlight Color	White

All Viewing Angle 240*320 2.0 inch IPS TFT Display Feature And Application
Chenghao Display CH200QV16A is a 240x320 spi tft customized for installation on the dash cam, which can be used in equipment including but not limited to small printers, smart coffee machines, household electric fans, children's cameras, medical beauty instruments, etc. In addition, this display has completed CE, FCC, RoHS certification, and can provide customers with one-year warranty service.

All Viewing Angle 240*320 2.0 inch IPS TFT Display Details
Keyword：2 inch tft lcd module
LCD type： 2.0”TFT
Dot arrangement： 240(RGB)×320 dots
Color filter array： RGB vertical stripe
Display mode： IPS / Transmission / Normally black
Viewing Direction： 80/80/80/80
Driver IC： ST7789V
Module size： 34.6(W)×47.8(H)×2.0(T) mm
Active area： 30.6(W)×40.8(H) mm
Dot pitch： 0.1275(W)×0.1275(H) mm

Interface： 4-line 8bits SPI
FPC Pin Number：12pin
Operating temperature： -20 ~ +70 ℃
Storage temperature： -30 ~ +80 ℃
Back Light： 3 White LED In Parallel
Luminance：350 cd/m2
Weight： TBD g
