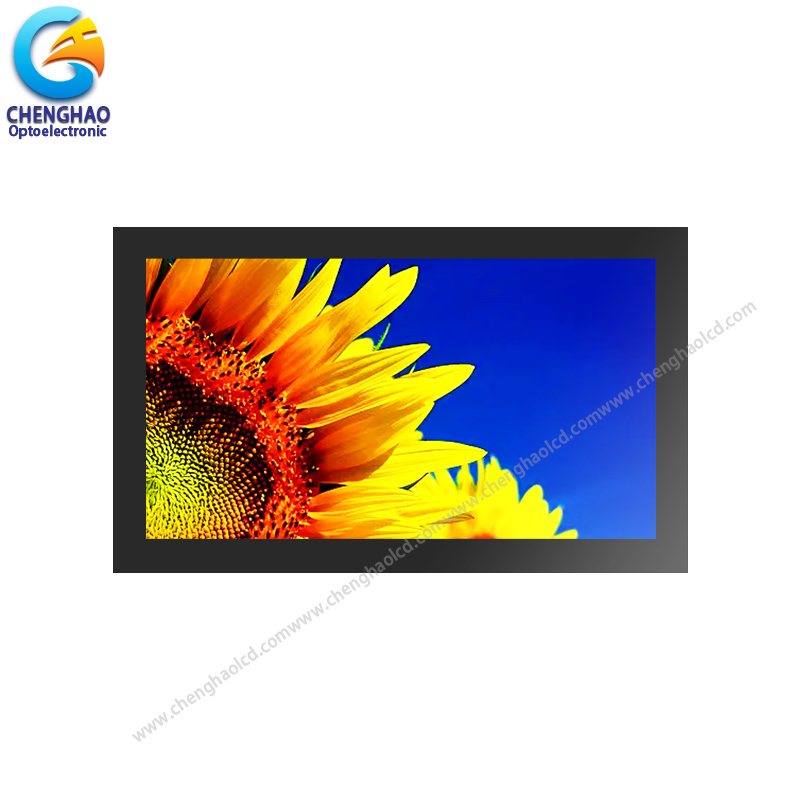

10.1 Inch IPS TFT LCD Touch Screen Display

As a professional 10.1 Inch IPS TFT LCD Touch Screen Display manufacturer and supplier in China, Chenghao can provide customers with extremely cost-effective TFT LCD display Module services. Our cooperative customers come from all over the world, especially developed countries in Europe and America. We look forward to communicating and cooperating with you!

Model:CH101WS07A-CT-PA

Send Inquiry

Product Description

1. 10.1 Inch IPS TFT LCD Touch Screen Display Description

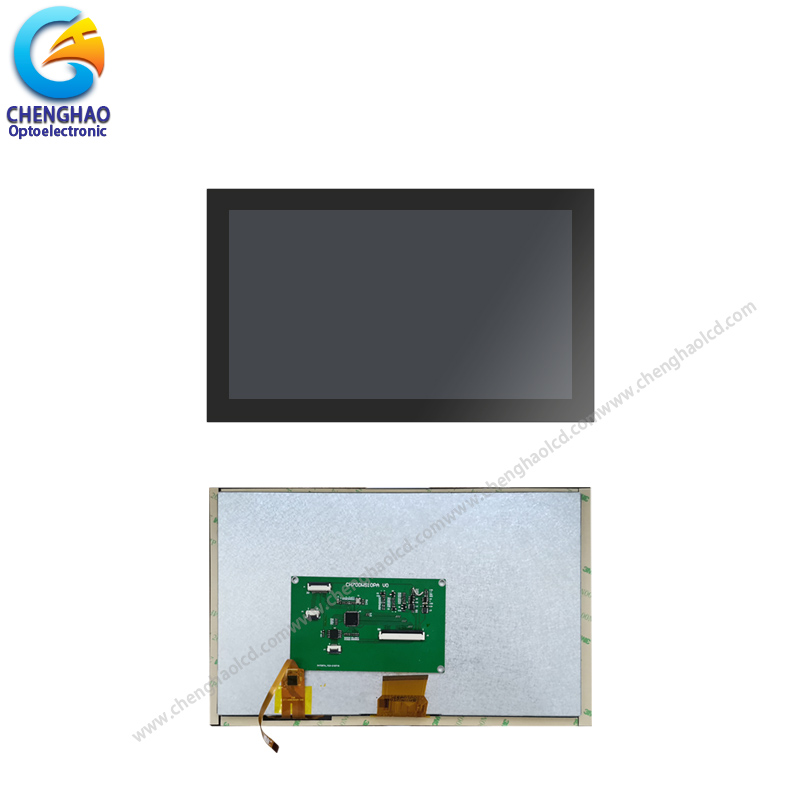

Chenghao 10.1 Inch IPS TFT LCD Touch Screen Display is a 10.1 inch TFT LCD Display Module with a one-year warranty. This 10.1 inch touch display mainly includes a touch cover, a CTP, a driver IC, a PCB driver board, a tft lcd panel, a backlight and an FPC Wait.
The touch cover is mainly produced according to customer requirements and must be compatible with tft lcd module and installed equipment.


The Tft Lcd Panel has a color display area measuring 10.1 inch diagonally and can provide a 1024*600 Resolution display. The backlight and FPC can be customized according to customer requirements, including backlight brightness and FPS shape structure and interface definition.


If this 1024*600 Touch Screen Display does not meet your project requirements, we have many similar products color lcd module for you to choose from, such as 10.1 inch Sunlight Readable lcd display, 10.1 Tft Lcd Module with Touch Panle, 10.1 inch HD lcd display,10.1 Inch Capacitive Touch Screen Module,10.1 inch touch screen lcd module,1024x600 tft lcd module...



2.Chenghao 10.1 tft lcd module with touch panle (Specification)

Model No.

CH101WS07A-CT-PA

Number of dots

1024(RGB)×600

Viewing Direction

ALL

Touch Panel Type

CTP

Display Type

10.1”TFT+CTP


3. 10.1 Inch IPS TFT LCD Touch Screen Display Feature And Application


4. 10.1 Inch IPS TFT LCD Touch Screen Display Details
(1)LCM No. CH101WS07A-CT-PA
(2)Module Name: 1024x600 touch lcd
(3)Manufacturer: Chenghao
(4)Supplier Type: Factory
(5)Warranty: one year
(6)Sales model: OEM
(7)Contrast:800:1
(8)Compliant:ROHS
(9)LCD type:10.1”TFT + CTP


(10)Dot arrangement :1024(RGB)×600 dots
(11)Color filter array: RGB vertical stripe
(12)Display mode: IPS / Transmissive / Normally Black
(13)Viewing Direction :80/80/80/80
(14)CTP type: G+G
(15)Surface Treatment :6H
(16)CTP Driver IC: GT911
(17)Module size: 252.00(W)×155.5.00(H)×10.75(T) mm


(18)TFT size:235.00(W)×143.00(H)×5.0(T) mm
(19)Active area: 222.72(W)×125.28(H) mm
(20)LENS Viewing area :223.72(W)×126.28(H) mm
(21)dot pitch: 0.2175(W)×0. 2088(H) mm
(22)Interface:TFT:SPI     CTP:I2C
(23)Operating temperature: -20 ~ +70 ℃
(24)Storage temperature :-30 ~ +80 ℃
(25)Back Light :42 White LED
(26)Weight: TBD g
